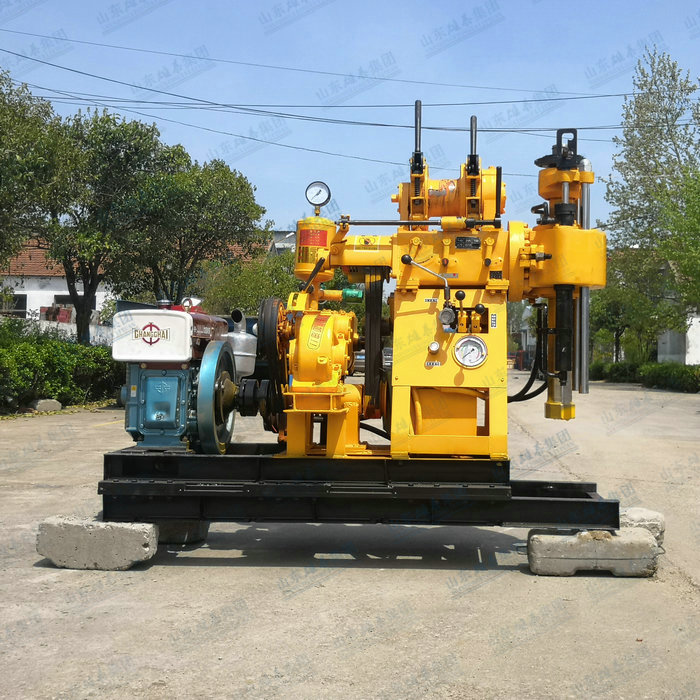

Structure of core drill

The rig is compact and simple in structure. Each part of the rig, including the drill pipe, can be transported by a 5-ton truck. In areas where transportation is not convenient, manual or draft horses can be used to transport by trail, which can greatly save the investment of building temporary roads and shorten the exploration period

Structure of core drill

Portable, flexible, safe and reliable

The rig is compact and simple in structure. Each part of the rig, including the drill pipe, can be transported by a 5-ton truck. In areas where transportation is not convenient, manual or draft horses can be used to transport by trail, which can greatly save the investment of building temporary roads, shorten the exploration period, save labor, and reduce the risk and cost of transportation. Drilling rig adopts hydraulic drive, modular, safe and reliable structure, easy to operate, reduce labor intensity, more humane; Airport electricity USES 12 volt dc power supply, electricity is safer; When the machine is moved, it is easy to remove and install, which can easily move the drilling rig. The maximum weight of a single component in the rig shall not exceed 250 kg, and the total weight shall be 1200 kg.

The new structure of the derrick is safe

The Angle of the drilling tower can be adjusted in the range of 45° ~ 90°. The drilling rig can conduct inclined hole drilling of -45° ~ -90°. No operation on the tower is needed to reduce the safety risk of operation on the tower and increase the safety factor of operation.
